Wabash COMBO FLATBEDS
| Manufacturer: WABASH |
Request More Info
Make & Model
Detailed Specifications
28'- 53'
96" and 102"
554: 55,000 lb in 4' / 60,000 lb in 10' / 93,700 lb evenly distributed,
654: 65,000 lb in 4' / 70,000 lb in 10' / 110,400 lb evenly distributed,
734: 73,000 lb in 4' / 80,000 lb in 10' / 125,000 lb evenly distributed
Trailer
Main beam flange and web fully welded at all flange-web joints ,
High-strength 50,000-PSI steel web ,
Web to flange attached by 100% automated continuous weld ,
Heat-treated, high-strength steel flanges rated at 130,000 PSI,
Cross braces on 24" centers and knee braces on nominal 48" centers
Three rear stake pockets integral to rear plate,
Horizontal bumper end caps for corrosion protection,
Rubber dock bumpers mounted vertically with three bolts,
Bumper assemblies are United States Department of Transportation (DOT) and Transport Canada compliant
Bolt-on, integrated winch track siderail made with 6061-TX extruded aluminum,
Radius edges and extruded aluminum rub rail with recessed groove,
Extruded aluminum stake pockets on 24" centers,
Lock-Rite II multi-position tie down system,
Large diameter double pipe spools
80K high tensile, 4" steel "I" beam crossmembers on 12" centers,
Mylar gaskets installed between aluminum and steel components,
Maximum strength, interlocking combination aluminum and wood floor boards, installed with two grade-8 screws per crossmember,
Eight 1-1/8" thick aluminum floorboards installed with two inner and outer apitong nailers and two grade-8 screws per crossmember,
Optional 5" aluminum crossmembers on 12" centers available
100% shot blasted prior to assembly, no chemical pretreatment required ,
Automotive grade paint system with ultra high-zinc epoxy primer and galvanic-coated prior to trailer assembly ,
Steel surfaces painted prior to assembly with automotive grade acrylic urethane paint,
Automotive-style badging
Trailer
Additional air and electric configurations,
Additional aluminum components,
Alternate crossmember spacing,
Corrosion prevention packages,
Customized bumper filler plates,
Disc brakes,
Factory installed bulkheads,
Specialized floor packages,
Multiple accessories, freight securement and storage options,
Multiple axle configurations, sliding suspensions and lift axles,
Premium rear features,
Description
THE COMBO FLATBED THAT CHANGED EVERYTHING
RELIABLE, AMERICAN-MADE VERSATILITY.

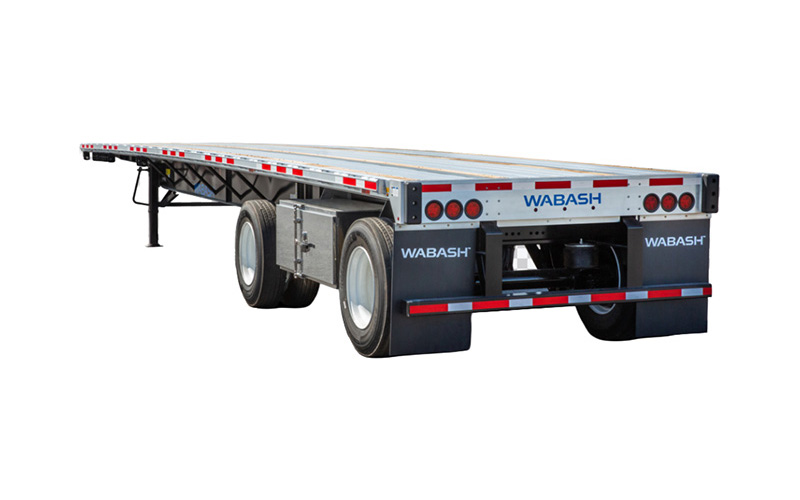

One of the first combo trailers, the Wabash Combo Flatbed (formerly, “the Eagle”) is now better than ever. This trailer boasts more load securement versatility, yet remains as rugged and dependable as back in the day. For high-strength performance without added weight, count on the our combo flatbed to haul more and stay on the road longer.
