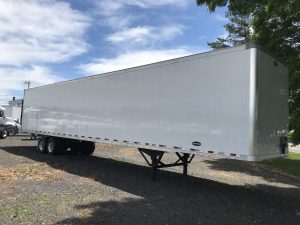

Strick Elevator

Category: Last Updated: 04/13/2023 08:48 AM

Make & Model

Detailed Specifications

Dry Van Trailers
Sheet & Post Construction
Exterior: 28' 0"
Interior: 27' 8"
Exterior: 102.36"
Interior: 99"*
Exterior: 13' 6"
Interior: 110" at eve
40,000 GVWR 2,269 cu. ft. of interior volume**
12-volt system with split wire harness with integral return ground and 14-gauge wiring throughout. B
1-3/8" extruded aluminum knurled flooring with recessed floorboard joints with 5/16" diameter Torx® head bolts on 12" centers. 2-3/8" galvanized floor caps at board terminations.
.048" thick pre-painted white aluminum sheets with (5) 3-1/4" deep galvanized steel hat-shaped posts.
One-piece, .040" thick, full width aluminum sheet and Strick's superior tension roof bow design.
One-piece, .040" thick, full width aluminum sheet and Strick's superior tension roof bow design.
8-3/4" deep heavy-duty extruded aluminum alloy 6061-T6 with floor sealing lip.
5-9/16" deep heavy-duty extruded aluminum alloy 6061-T6.
5.75" round with 16-1/2" x 7" “S” cam brakes. Quick change non-asbestos lining with 5.5" ArvinMeritor automatic slack adjusters
Hendrickson 23K INTRAAX air ride suspension
Limited five-year warranty

Description

The solution to carrying your dry freight efficiently and safely in your daily operations can easily be met with one of Strick’s standard dry van trailer models. Using quality components in every model, coupled with engineering expertise in trailer transportation, we can customize any van to your specific operation needs.

Strick Trailers has been innovating trailer solutions for years and has gone BEYOND THE ORDINARY
with our Elevator™ model. This trailer has been strategically engineered to provide maximum freight
capacity and savings, giving you maximum possibilities. If your business demands more specific
requirements, this trailer can easily be configured to meet the unique needs of your operation.
