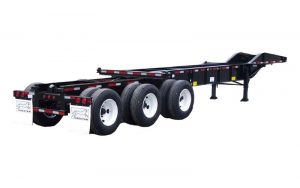

Cheetah Chassis 23.5’ SLIDER CHASSIS

Category: Last Updated: 03/23/2022 02:00 PM

Make & Model

Detailed Specifications

SLIDER CHASSIS
Approximately 6,450 lb.
54,000 lb.
All structural steel is ASTM-A572, Grade 50, or ASTMA607, Grade 50. All structural fasteners are Grade 5 or better and are zinc coated
Fabricated I-beam with high-tensile steel
6" × 4.25" tube
Fabricated steel
5/16"-thick pick up plate
Single piece fabricated channel with 3/8" top plate
Single piece fabricated channel with 3/8" top plate
23.2 feet
26.9 feet
96 inches
Steel outboard mounted
Three-leaf spring ride

Description

The 23.5′ Slider Chassis is the standard model throughout the United States for carrying 20′ ISO containers. The 44″ sliding bogie provides greater carrying capacity under federal bridge law regulations.

This extendable container chassis is assembled in the USA and built to last, featuring state-of-the-art fabrication, welding, and paint systems.
